Quick Details

  • Type: Reflow Solder
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Puhui

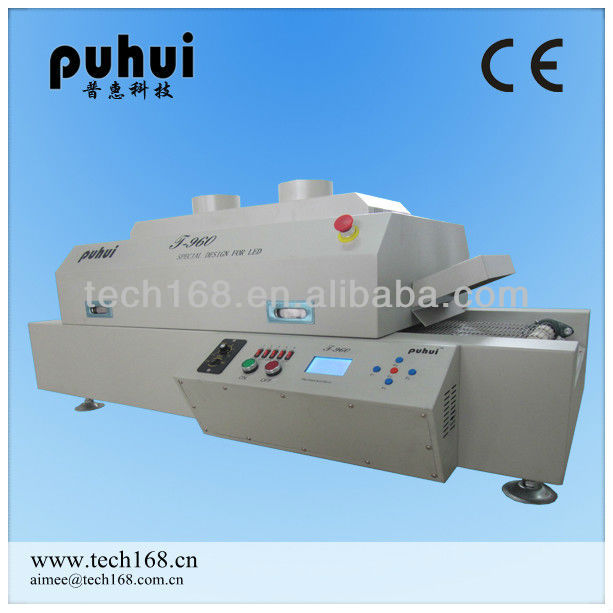

  • Model Number: T-960
  • Usage: LED welding
  • Voltage: 220V/380V
  • Weight: 130/175KG
  • Dimensions: 150*90*65cm
  • Rated Duty Cycle: 100%
  • Rated Capacity: 1500W
  • Current: 22A
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available

Packaging & Delivery

Packaging Details woodern
Delivery Time Shipped in 7 days after payment





Features:



1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.

2. This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.

3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.

4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.

5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.

6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.

7. Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.

8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.

9. Independent cooling zone, to ensure the PCB board of low temperature when the required.

10. Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.

11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored.



Technical parameters



Model

T-960

The heating zone quantity

upper3/down2

The length of the heating zone

960mm

The heating type

intelligent level sirocco and rapid infrared heating

The cooling zone quantity

1

Maximum width of PCB board

300MM

The operation direction

left→right

Delivery options

Net transmission+chain transmission

The speed of conveyer belt

0-1600mm/min

The power supply

Three phase 5 line 380V 50/60Hz

Peak power

4.5KW

Heating up time

Around 15mins

Temperature control range

Room temperature~300°C

Temperature control mode

PID closed-loop control

Temperature control accuracy

±1°C

PCB temperature distribution deviation

±2°C

Overall dimensions

1450×630×470

Machine weight

140KGS
