Quick Details

  • Type: Reflow Solder
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PUHUI
  • Model Number: MT-602
  • Dimensions: 300mm*400mm
  • Certification: CE
  • positioning accuracy: 0.025mm
  • number of rack: 56:8mm=50,12mm=4,16mm=2
  • 602 mounting head: double mounting head
  • operating system: Windows
  • average speed: : 5000CPH

Packaging & Delivery

Packaging Details: professional export wooden
Delivery Detail: Payment to delivery

Taian puhui / SMT automatic / multi-functional / high efficiency / desktop / free feeder / Mounter / MT-602

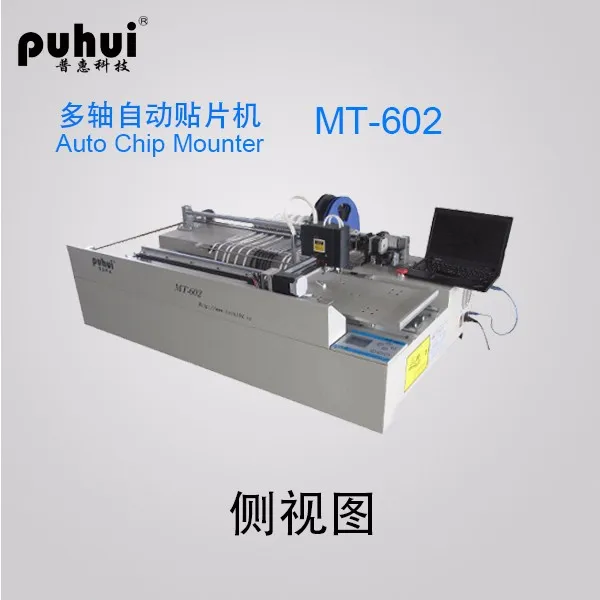

Puhui MT-602 is a new type of pick and place machine. It is widely used for the PCB and LED board in the size of 300*400mm. Adopt two mounting head, it is easy to operate with high precision and stable.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Pproduct Type
MT-602
Mounting Head
double mounting head
Average Speed
5000CPH
Positioning Accuracy
0.025mm
Net Weight
151kg
Applicable Elements
0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc.
Number of Rack
56:8mm=50,12mm=4,16mm=2
Number of offline storage files
20
Max size of circuit board
300mm×400mm
Power Supply
220V,50/60Hz,280W
Vacuum gas source
-50Kpa,13L/min
Operating System
Windows
Installation Dimension W×D×H
1396*761*480
Number of vacuum pump
2
Number of pump
1
Malfunction detection
Suction leak detection, pressure detection

Main Features

1.Independent of the placement structure

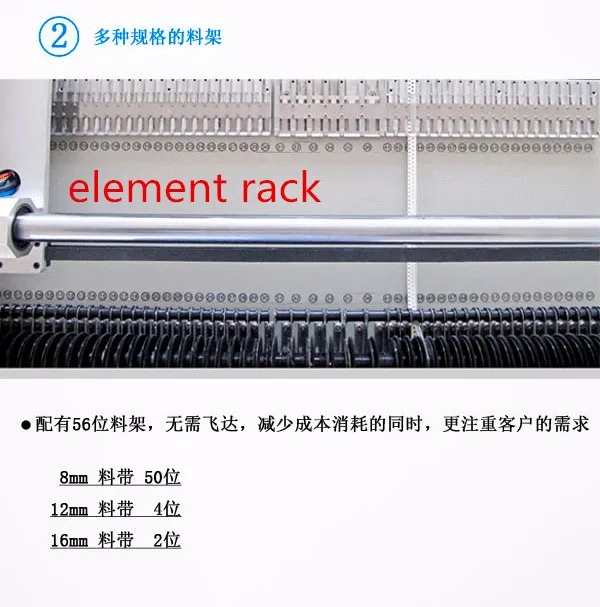

2.A variety of rack specifications
3.Any trapping placement function
4.Leak detection function
5.Easy to learn the placement of software

Machine Parts

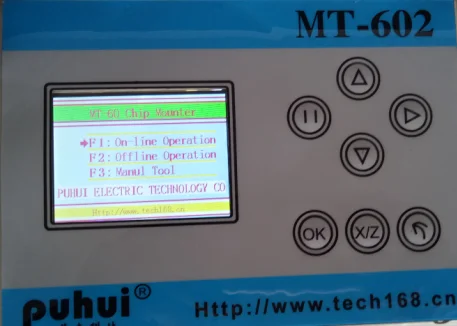

Name: control panel

Brand:Puhui

Original:China

MT-602 can be used with offline or cimputer.

When offline, it can be saved 20 placement files.

Main Features

Name: pick and place structure
Brand: Puhui
Original: China

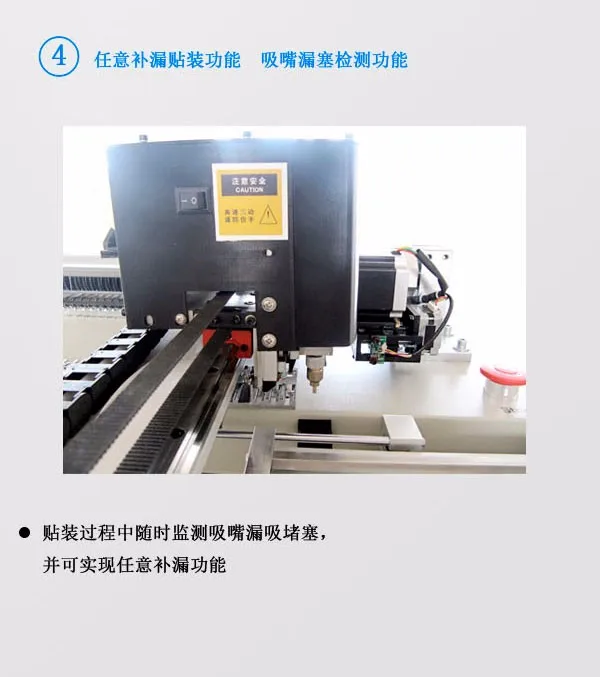

this structure has the function of automatic inspection when leaking the element. The nozzle can pick 8mm,12mm, 16mm.

Machine Parts

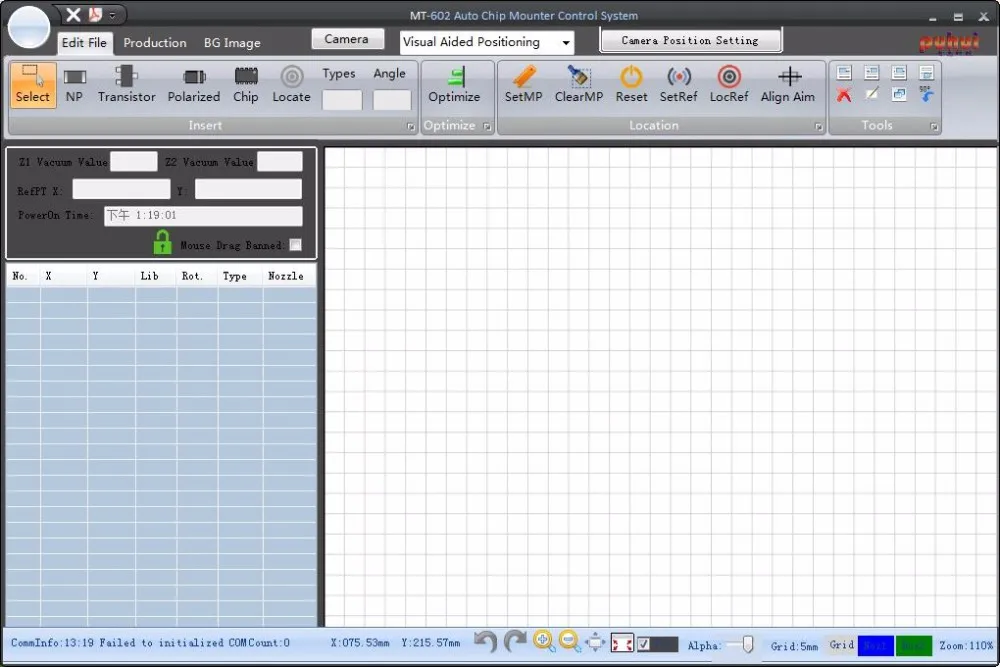

Name: Operating software
Brand: Puhui
Original: China
Operating software of MT-602 is easy to undersatnd,learn and operate.
